Wintex MCL3
Two metres down. As deep as necessary.
- Depth
- To 120 or 200 cm
- Layers
- Full core
- Samples / hour
- 4
- Drive
- High-frequency hammer
Product information
Maximum power to 200 cm. Automatic control of sampling speed and a high-frequency hammer for representative, homogeneous samples.
The Wintex MCL3 is a strong, powerful sampler chosen by ministries of agriculture, national research institutes and leading contractors in many European countries for the work of complying with the EU Nitrates Directive 91/676/EEC.
Its probe has a specially designed tip for representative, homogeneous samples at full depth, and it has become the leading sampler for 1.20 m and 2 m. A special valve sets the maximum speed for the soil automatically, so there is nothing to adjust by hand.
What makes the MCL3 work.
- 01
- 1.20 m and 2 mDelivered for 1.20 m, or for both 1.20 m and 2 m.
- 02

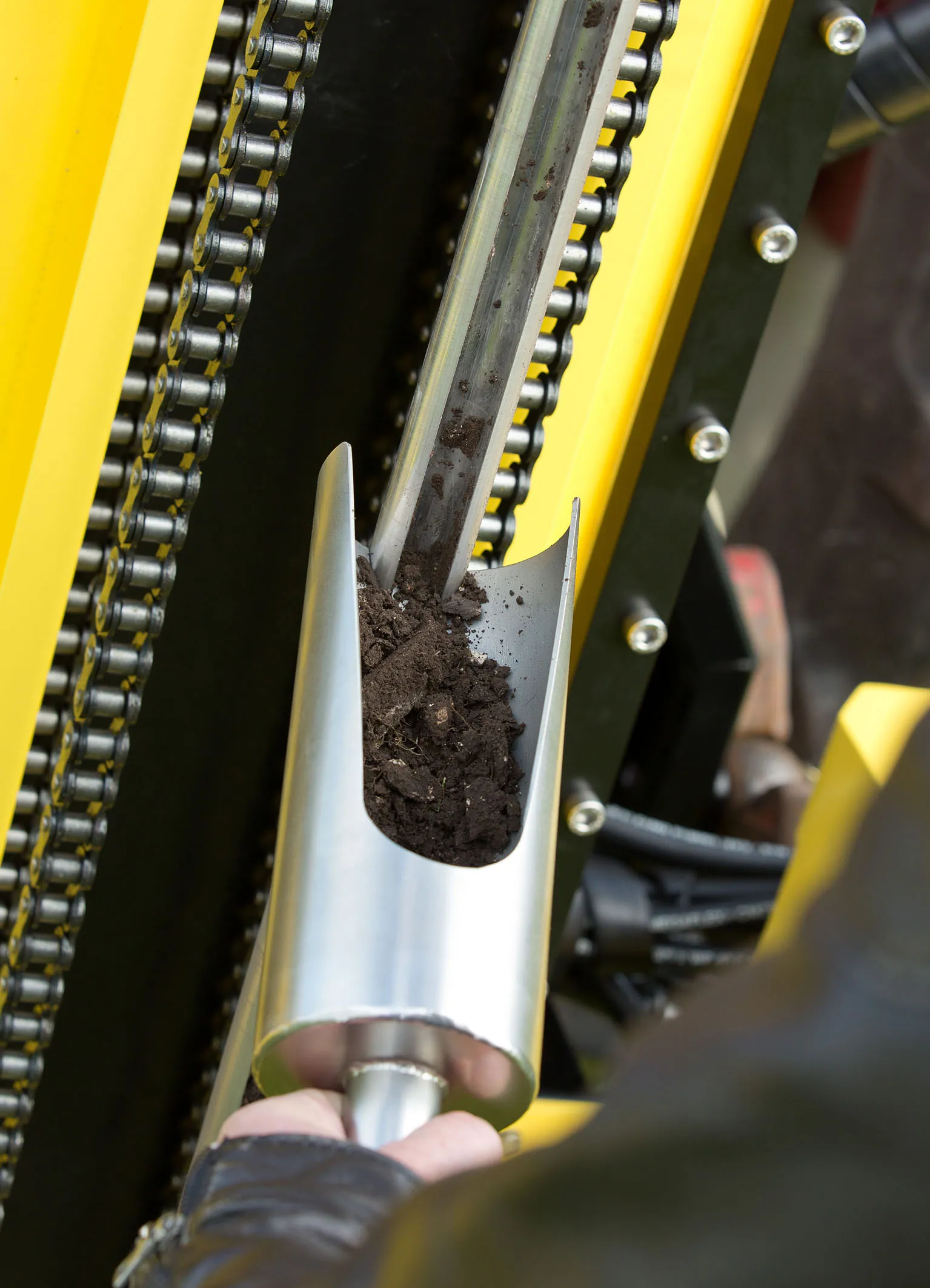

- High-frequency hammerDrives the probe into any ground, then rotates it for a clean full-depth core.
- 03

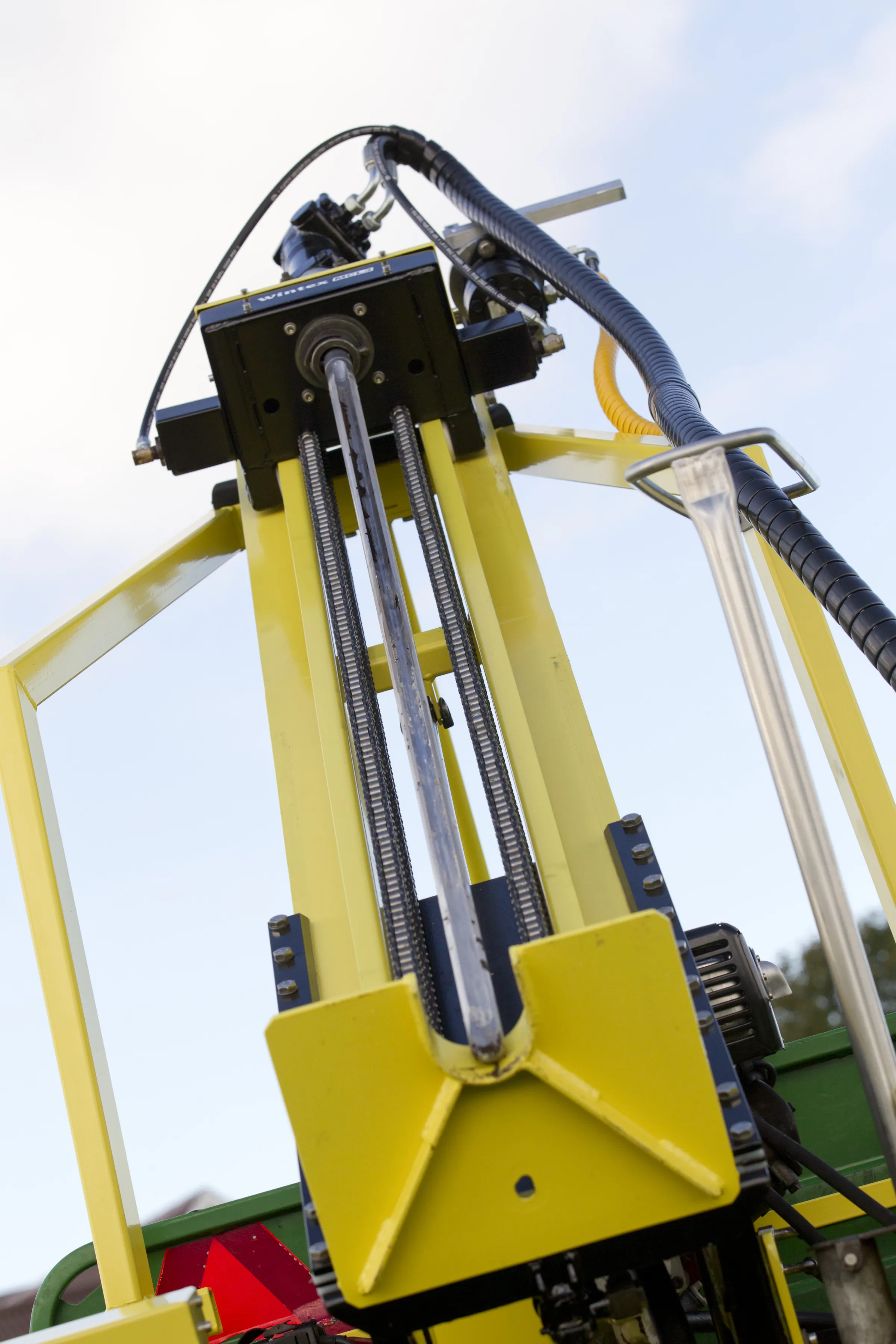

- Four functions, one panelRaise the mast, set it down, hammer the probe in, rotate it.
- 04

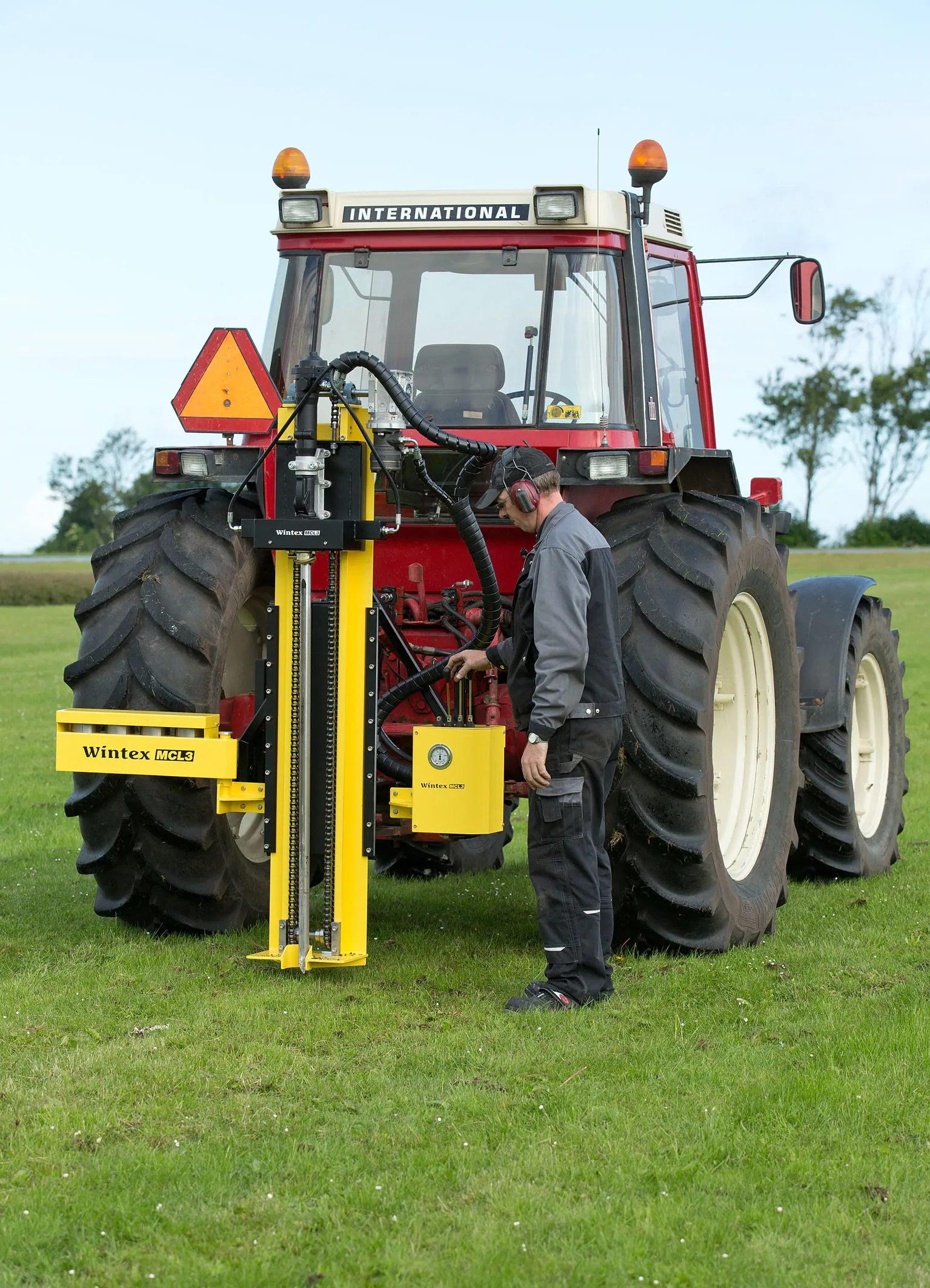

- MCL3 or MCL3TMCL3 with its own hydraulics for Gators, pick-ups and trailers; lighter MCL3T on tractor hydraulics.
Specifications
- Sampling depth
- 120 cm, or 120 and 200 cm
- Samples per hour
- 4
- Sticks per hour
- 60
- Sticks per sample
- 10–16
- Volume per sample
- 300–500 g
- Probe diameter
- 35 mm
- Hydraulic system
- Honda GX390, 11 hp (MCL3)
- Hydraulic consumption
- 20 l/min, 120 bar
- Hydraulic tank
- 30 litres
- Net weight
- 420 kg (MCL3), 290 kg (MCL3T)
Downloads
Questions about fitting it to your vehicle, or about prices? Your local representative will help, or contact us in Thisted.
