Soil samplers / 02 of 07
Wintex 1000s
Top soil, in any ground. Even frozen.
- Depth
- 0–30 cm
- Layers
- 1 layer
- Samples / hour
- 15
- Drive
- Hydraulic hammer
Product information
Automatic samples to 30 cm in every kind of soil, frozen ground included. Reliable and robust, with a hydraulic hammer.
The Wintex 1000s takes automatic samples to 30 cm, always at exactly the same depth, infinitely adjustable from 0 to 30 cm. Compared with sampling by hand, the number of samples and the acreage covered rise sharply, without hiring extra help.
A hydraulic hammer and the pressure from the cylinder drive the probe to the set depth. The pressure is adjusted to the soil type, so the 1000s samples reliably in every kind of soil, even in frozen ground.
What makes the 1000s work.
- 01
- Hydraulic hammerHammer and cylinder pressure together take the probe to depth in hard, dry and frozen soil.
- 02
- Exact depth, every timeAdjustable from 0 to 30 cm, and every stick goes to the same depth.
- 03

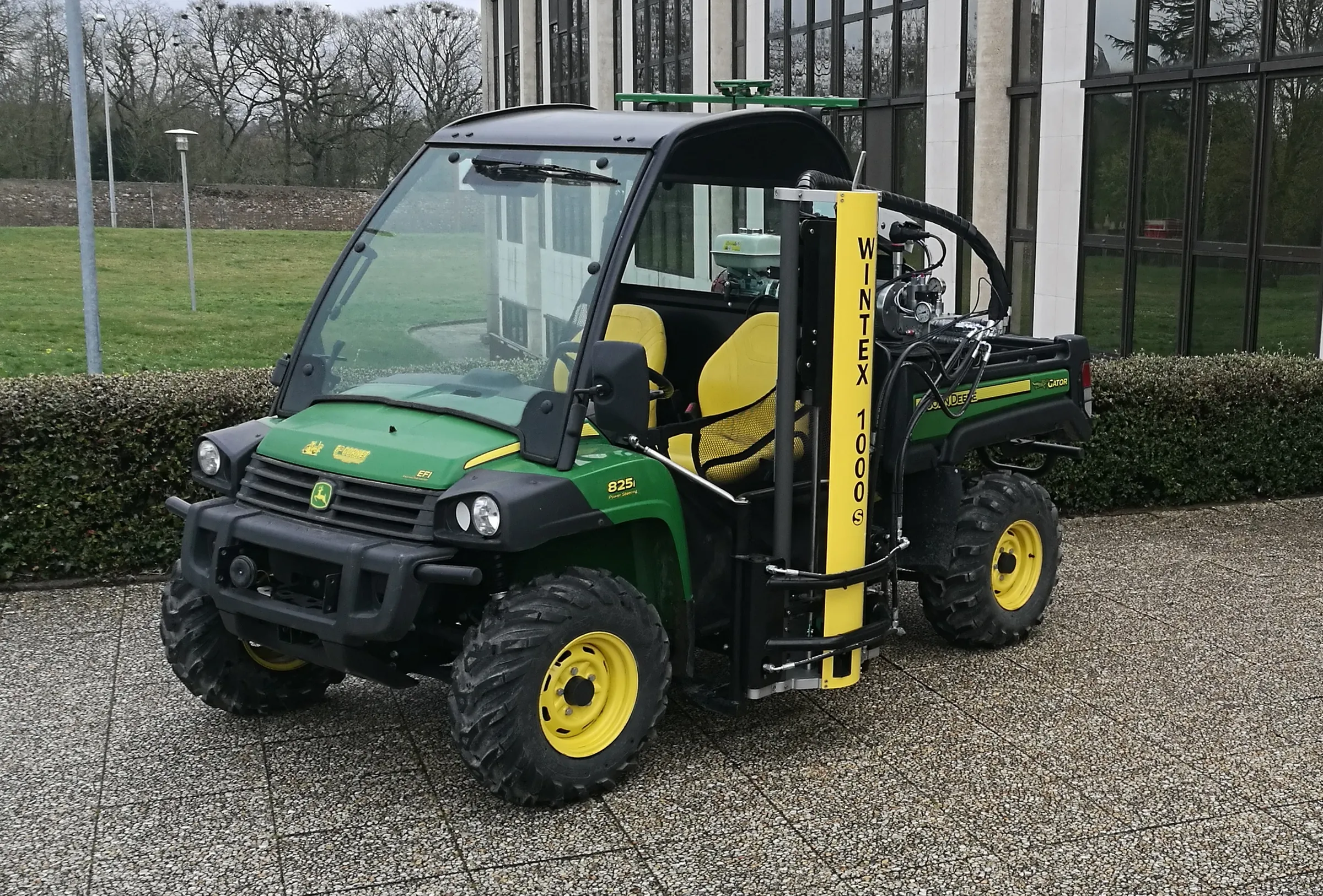

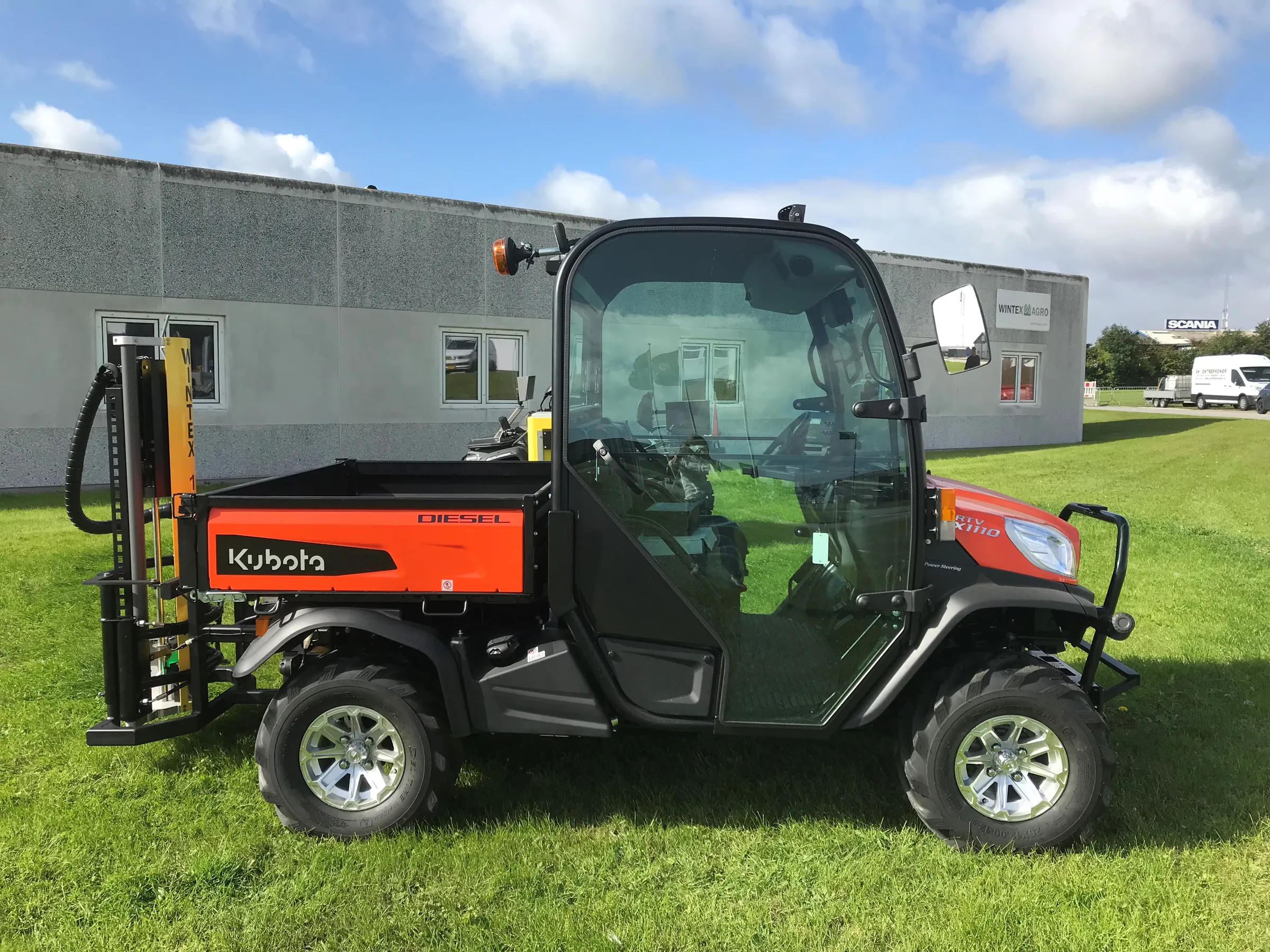

- Any carrierMounts on virtually every vehicle, all functions from the driver’s seat.
- 04
- Low upkeepRobust build with few wearing parts and minimal maintenance.
Specifications
- Sampling depth
- 0–30 cm, infinitely adjustable
- Samples per hour
- 15
- Sticks per hour
- 225
- Sticks per sample
- 14–16
- Probe diameter
- 26 mm
- Volume per sample
- 26 mm probe for 1.5, 2.0 or 2.5 g/cm at density 1:1
- Hydraulic system
- Honda GX200, 5.5 hp
- Hydraulic consumption
- 16 l/min, 100 bar
- Hydraulic tank
- 7 litres
- Electrical power
- 12 V DC
- Battery capacity
- 14 Ah, 250 W
- Net weight
- 85 kg
Downloads
Questions about fitting it to your vehicle, or about prices? Your local representative will help, or contact us in Thisted.
Soil sampling with the Wintex 1000s
All filmsFrom the field

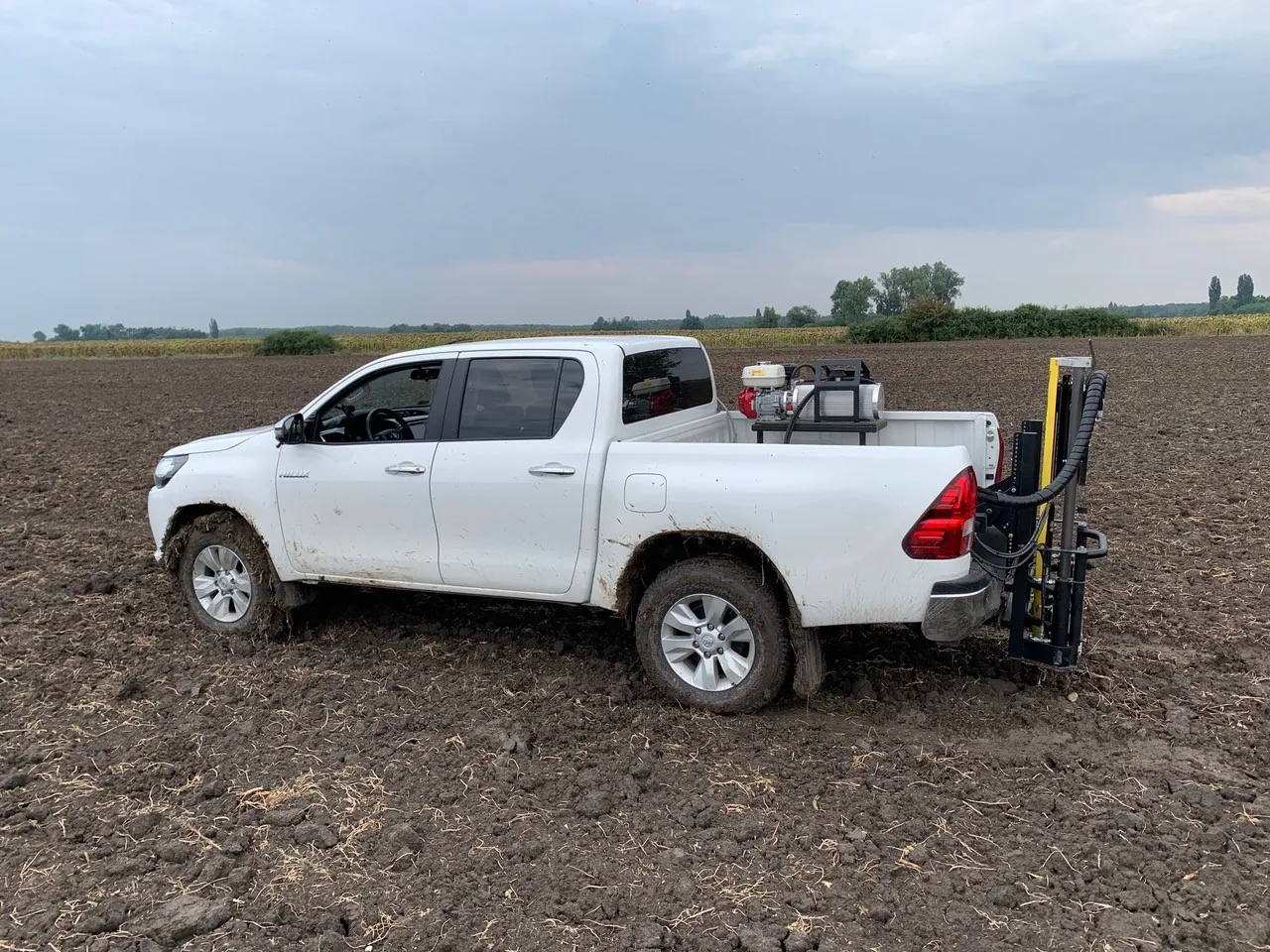

“We offer variable-rate seeding and plant nutrition services for Hungarian farmers, and the basis for these services is knowledge of the soil. We asked our UK partners, SOYL, which soil sampler was the best. They proposed Wintex Agro and the Wintex 1000s. We purchased it and are very satisfied: it takes samples from any type of soil to 30 cm, wherever the Toyota Hilux can get ahead. We plan to invest in the same unit next year.”
Next · 0–60 cm
Wintex 2000
