Wintex 3000
Ninety centimetres. Three layers. One pass.
- Depth
- 0–90 cm
- Layers
- 1, 2 or 3 layers
- Samples / hour
- 15
- Drive
- Hydraulic hammer
Product information
Automatic samples to 90 cm in all soils, from three layers in one process. Accurate splitting into three soil boxes, depth individually adjustable.
The Wintex 3000 is an automatic, powerful and reliable sampler for fast, efficient sampling to 90 cm. It is easy to use, needs little maintenance, and every function runs from the driver’s seat.

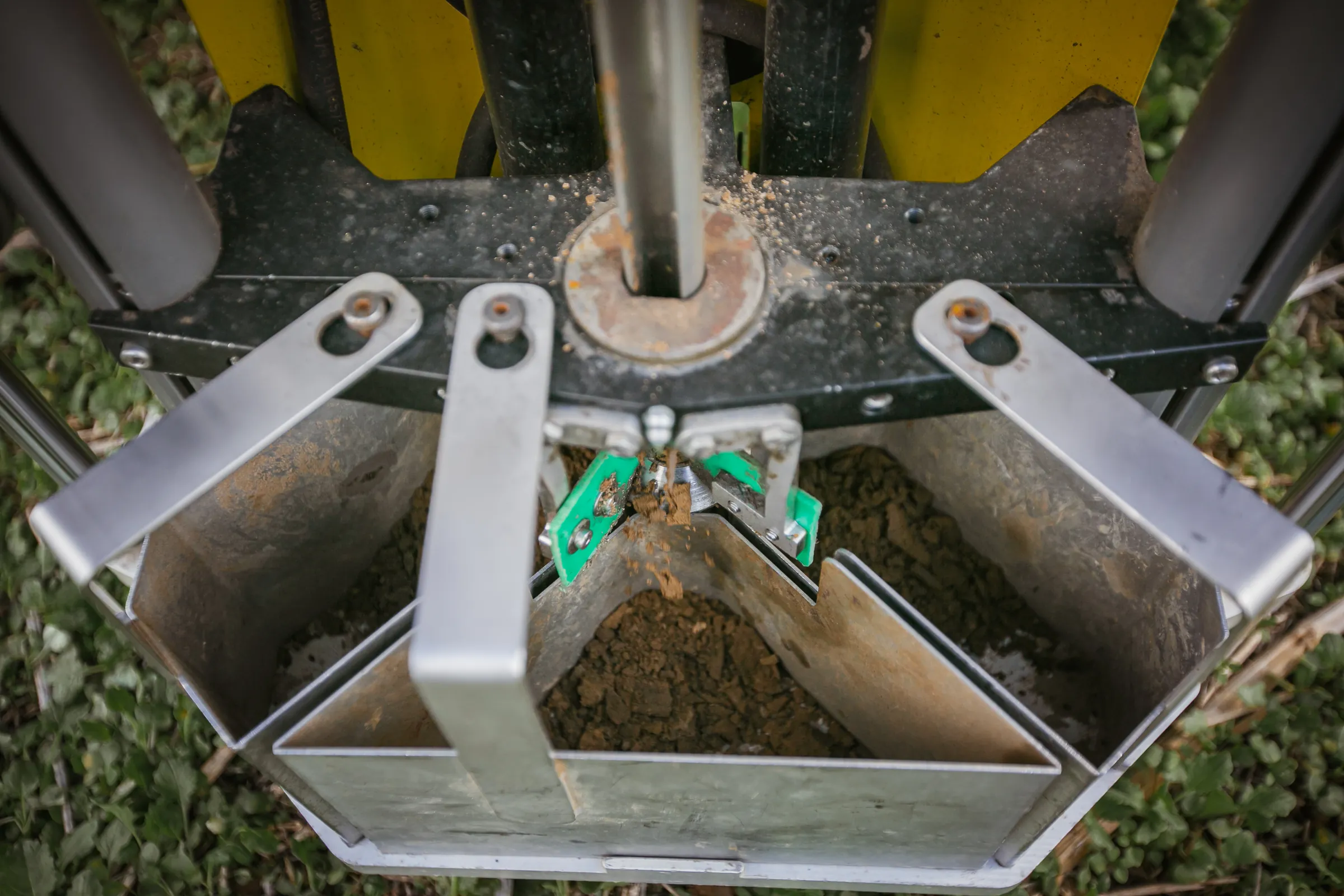

It takes samples from one, two or three layers in a single operation. Total depth and split points are infinitely adjustable, and each layer is divided precisely and filled into its own soil box. It works in any soil: clay, sand or really hard ground.
What makes the 3000 work.
- 01
- Three layers, one passOne, two or three depth bands from a single core, each in its own box.
- 02
- One stick in 22–28 secondsAbout 15 samples an hour to 90 cm.
- 03
- Any soilClayey, sandy or really hard: the hammer and adjustable pressure get there.
- 04

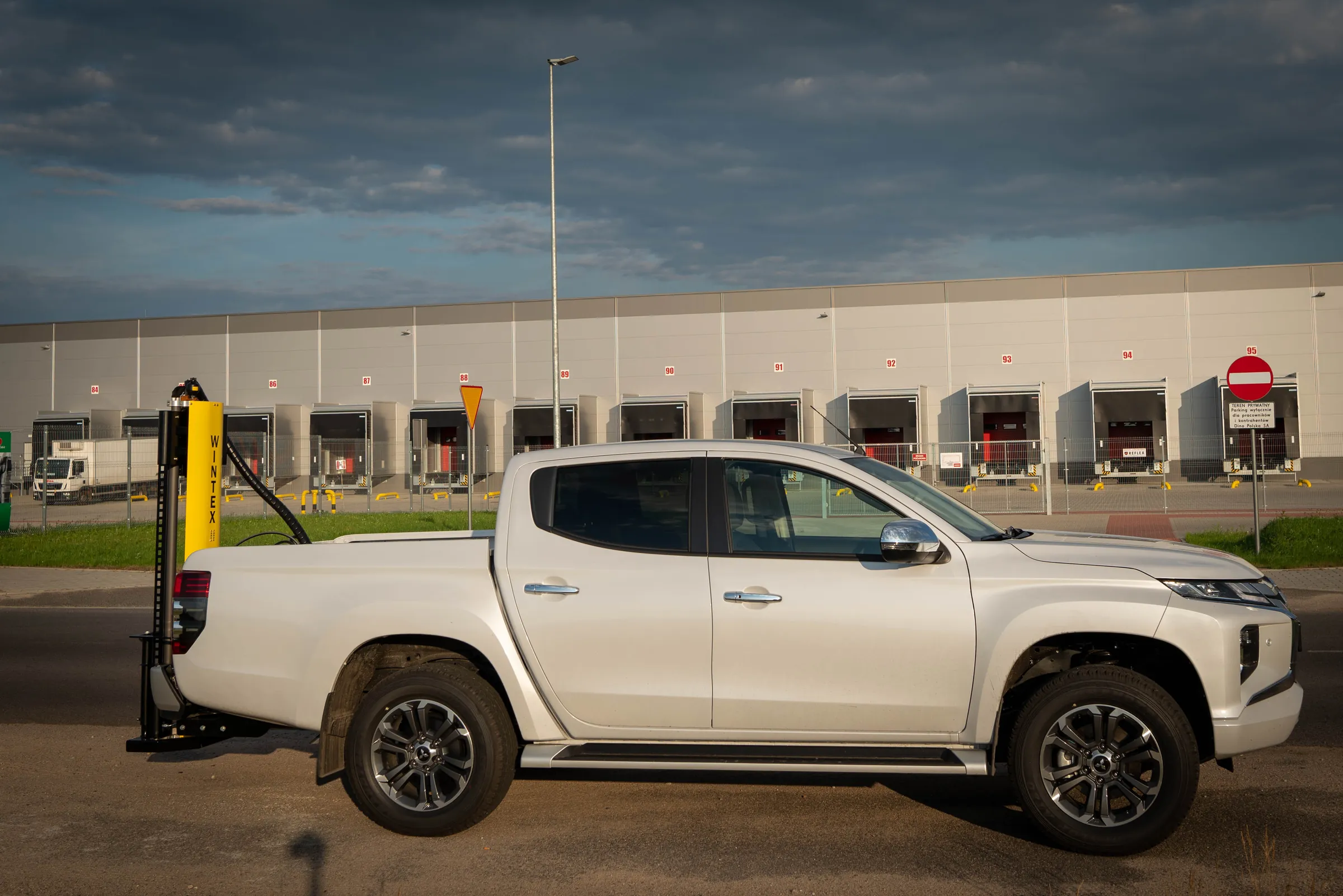

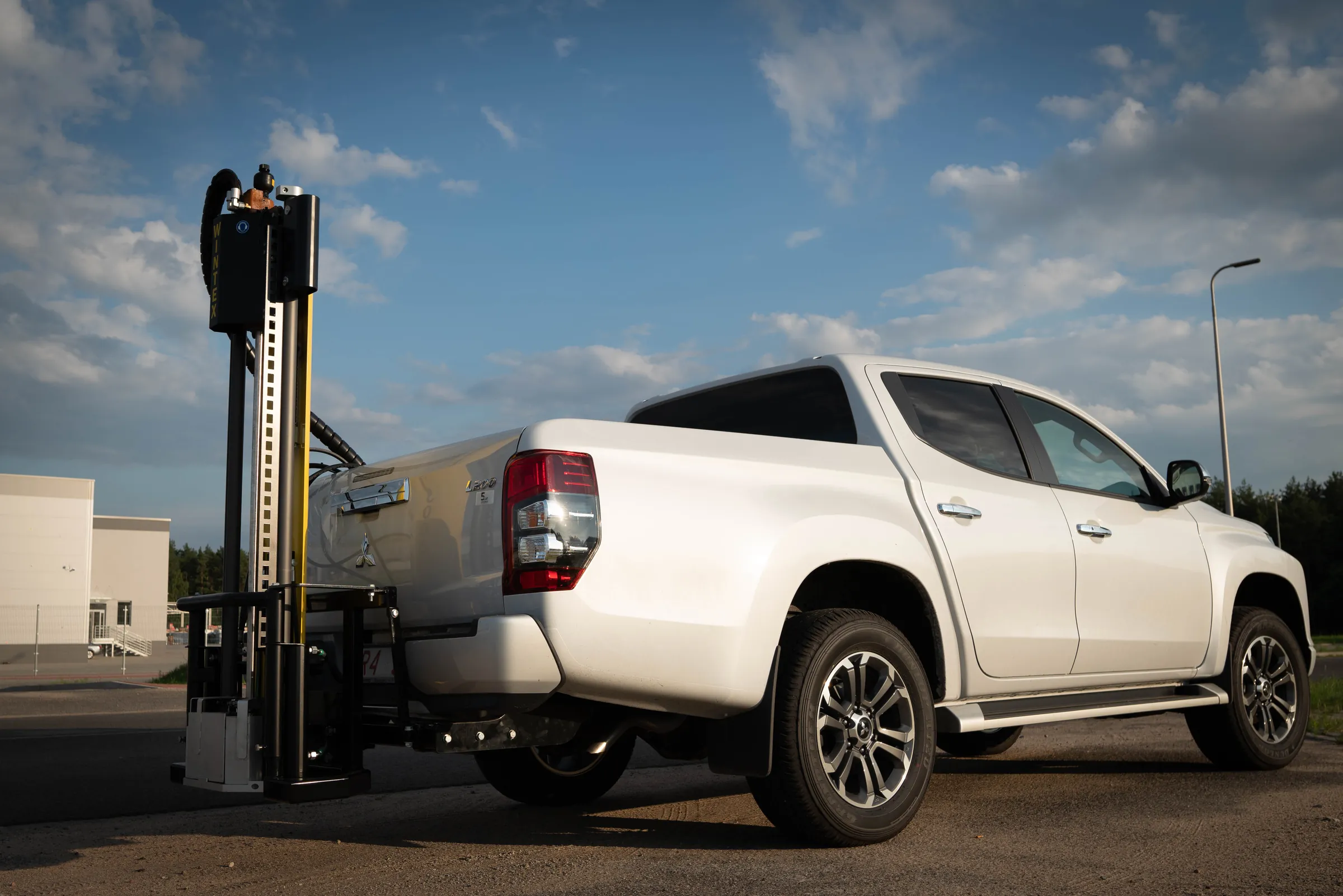

- Any carrierTractors, pick-ups, trailers or tracked vehicles.
Specifications
- Sampling depth
- 0–90 cm, infinitely adjustable
- Layers per operation
- 1, 2 or 3
- Samples per hour
- 15
- Cycle time
- 1 stick in 22–28 s
- Sticks per sample
- 14–16
- Probe diameter
- 26 mm
- Volume per sample
- 26 mm probe for 1.5, 2.0 or 2.5 g/cm at density 1:1
- Hydraulic system
- Honda GX200, 5.5 hp
- Hydraulic consumption
- 16 l/min, 100 bar
- Hydraulic tank
- 7 litres
- Electrical power
- 12 V DC
- Battery capacity
- 14 Ah, 250 W
- Net weight
- 112 kg
Downloads
Questions about fitting it to your vehicle, or about prices? Your local representative will help, or contact us in Thisted.
From the field
“The Wintex soil sampler (Wintex 3000) is an easy-to-use, straightforward machine that alleviates the physical stress of collecting soil samples by hand. It can collect samples from multiple soil depths, and makes the sampling process efficient.”
