Soil samplers / 04 of 07
Wintex 2500
Three layers from 60 centimetres.
- Depth
- 0–60 cm
- Layers
- 2 or 3 layers
- Samples / hour
- 15
- Drive
- Hydraulic hammer
Product information
Three programs, infinitely variable depth and up to three samples in one step. Automatic sampling to 60 cm in every soil.

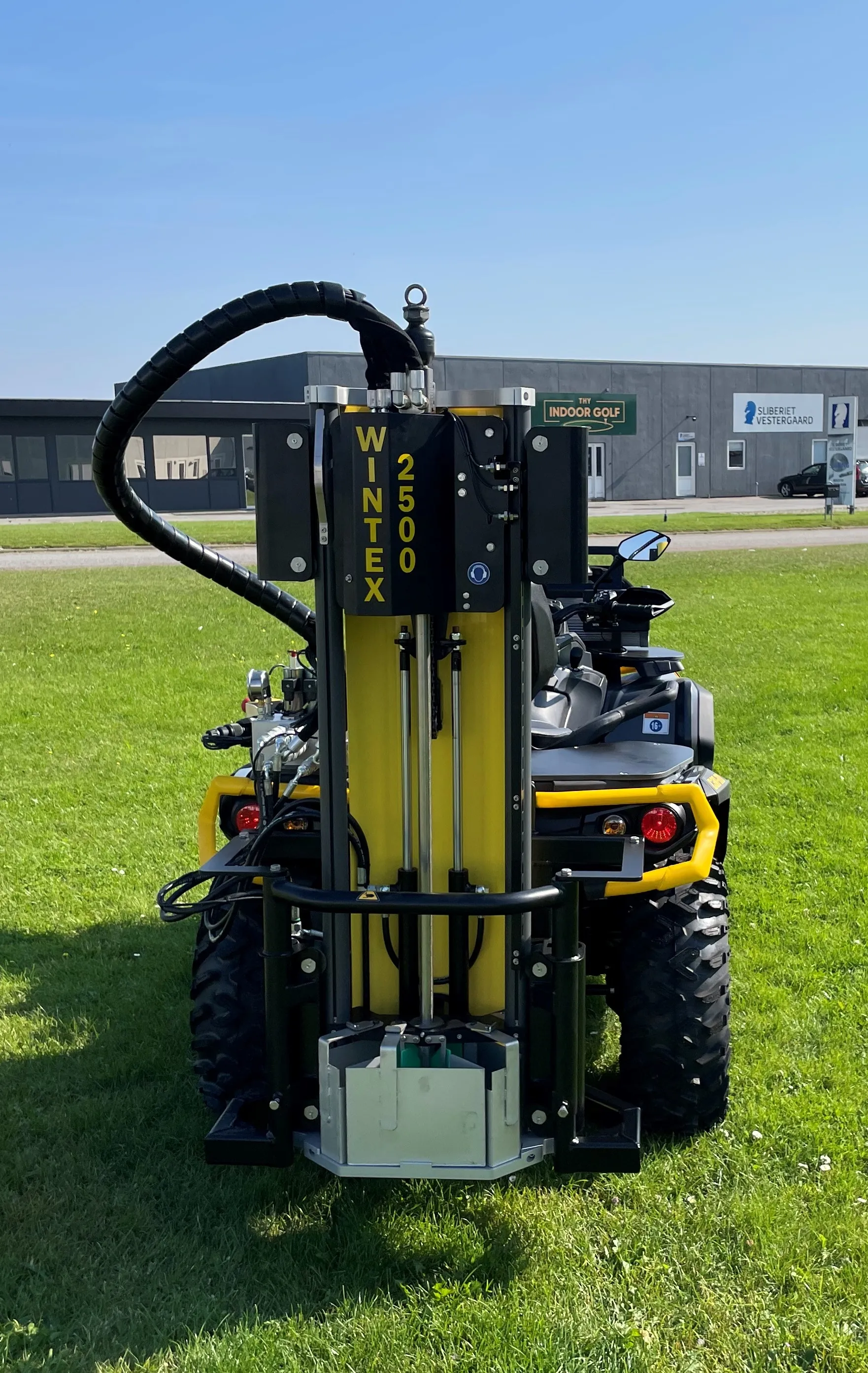

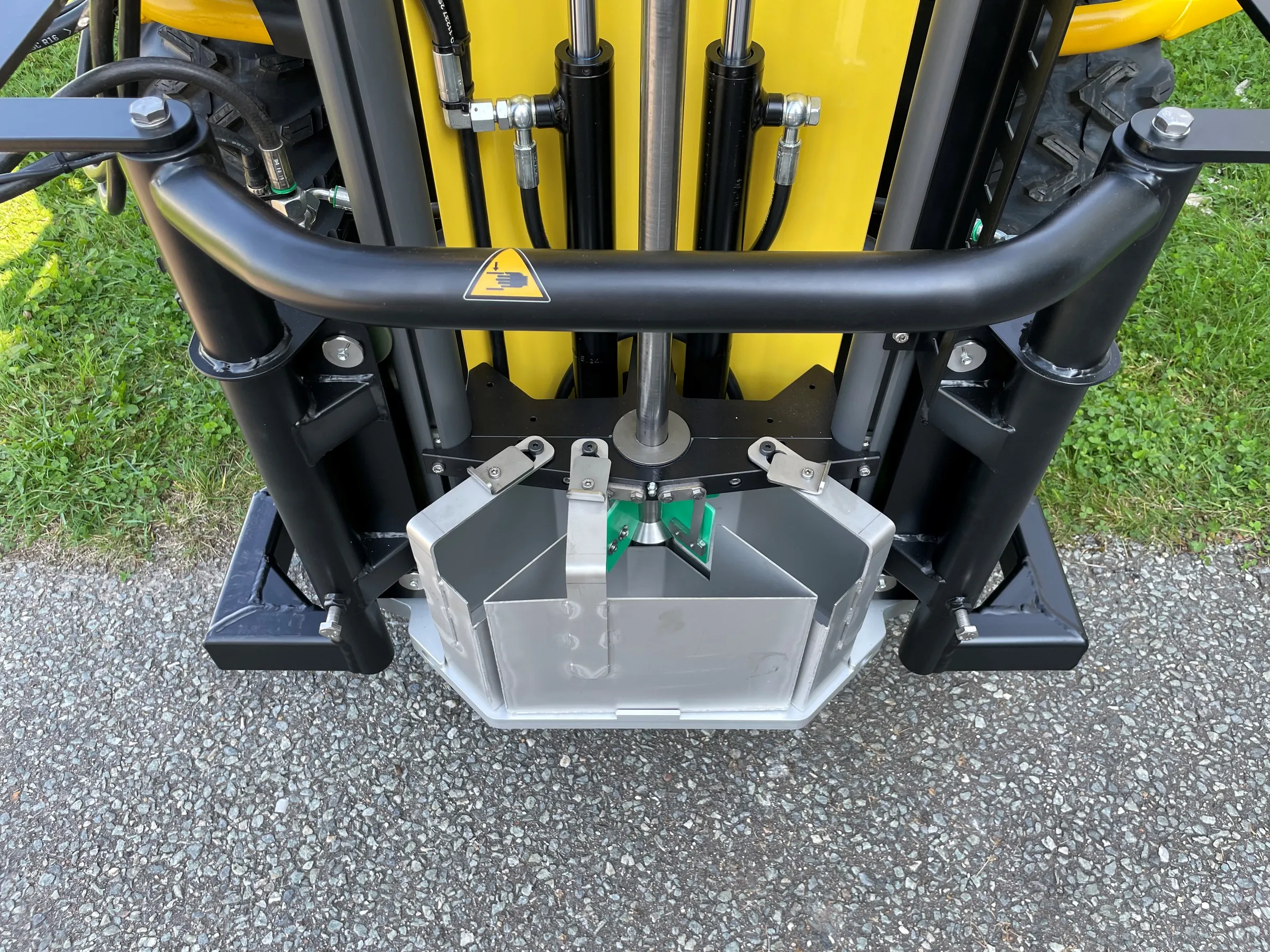

The Wintex 2500 samples to 60 cm and splits each core into two or three layers in one operation, delivered with close accuracy into the soil boxes. The split points are set to the user’s requirements.
Like the 2000, it works with a hydraulic hammer and adjustable pressure, so it goes easily into every kind of soil, even frozen ground, always at exactly the same depth.
60 cm
What makes the 2500 work.
- 01
- Up to three layersOne core, divided into two or three depth bands in a single operation.
- 02
- Three programsAdjustable for sandy, clay, hard and dry soils.
- 03
- Hydraulic hammerConsistent depth in any ground, frozen included.
- 04
- Any carrierATVs, pick-ups, tracked vehicles, tractors and trailers.
Specifications
- Sampling depth
- 0–60 cm, infinitely adjustable
- Layers per operation
- 2 or 3
- Samples per hour
- 15
- Sticks per hour
- 225
- Sticks per sample
- 14–16
- Probe diameter
- 26 mm
- Volume per sample
- 26 mm probe for 1.5, 2.0 or 2.5 g/cm at density 1:1
- Hydraulic system
- Honda GX200, 5.5 hp
- Hydraulic consumption
- 16 l/min, 100 bar
- Hydraulic tank
- 7 litres
- Electrical power
- 12 V DC
- Battery capacity
- 14 Ah, 250 W
- Net weight
- 110 kg
Downloads
Questions about fitting it to your vehicle, or about prices? Your local representative will help, or contact us in Thisted.
