Soil samplers / 03 of 07
Wintex 2000
Two layers. One operation.
- Depth
- 0–60 cm
- Layers
- 2 layers
- Samples / hour
- 15
- Drive
- Hydraulic hammer
Product information
Two programs, infinitely variable depth and two samples in one step. Automatic sampling to 60 cm in sand, clay, hard and dry soil.
The Wintex 2000 is a powerful automatic sampler for samples to 60 cm. 225 sticks and 15 samples an hour make it fast and efficient, so much larger areas can be sampled in far less time.
It samples two layers at once and delivers them precisely into two soil boxes. Where the sample is split is set by the user, and a hydraulic hammer takes the probe easily into every kind of soil, frozen ground included.
What makes the 2000 work.
- 01
- Two layers at onceTop and sub-layer split at the point you choose and delivered to separate soil boxes.
- 02
- Hydraulic hammerAdjustable down-pressure for sandy, clay, hard, dry and frozen ground.
- 03
- Proven in the hardest conditionsMountain meadows, stony vineyards and compacted farmland, according to users in Slovakia.
- 04

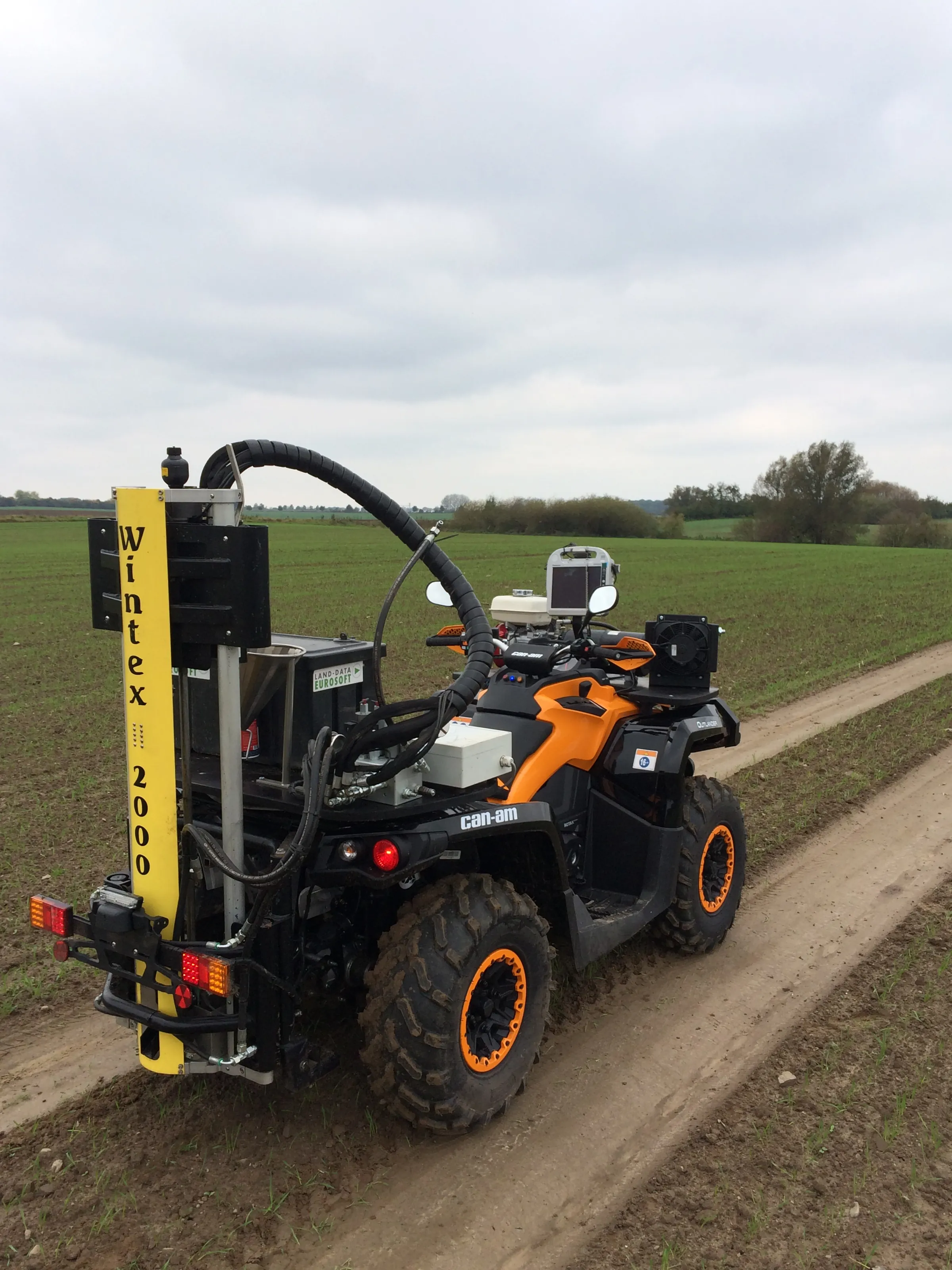

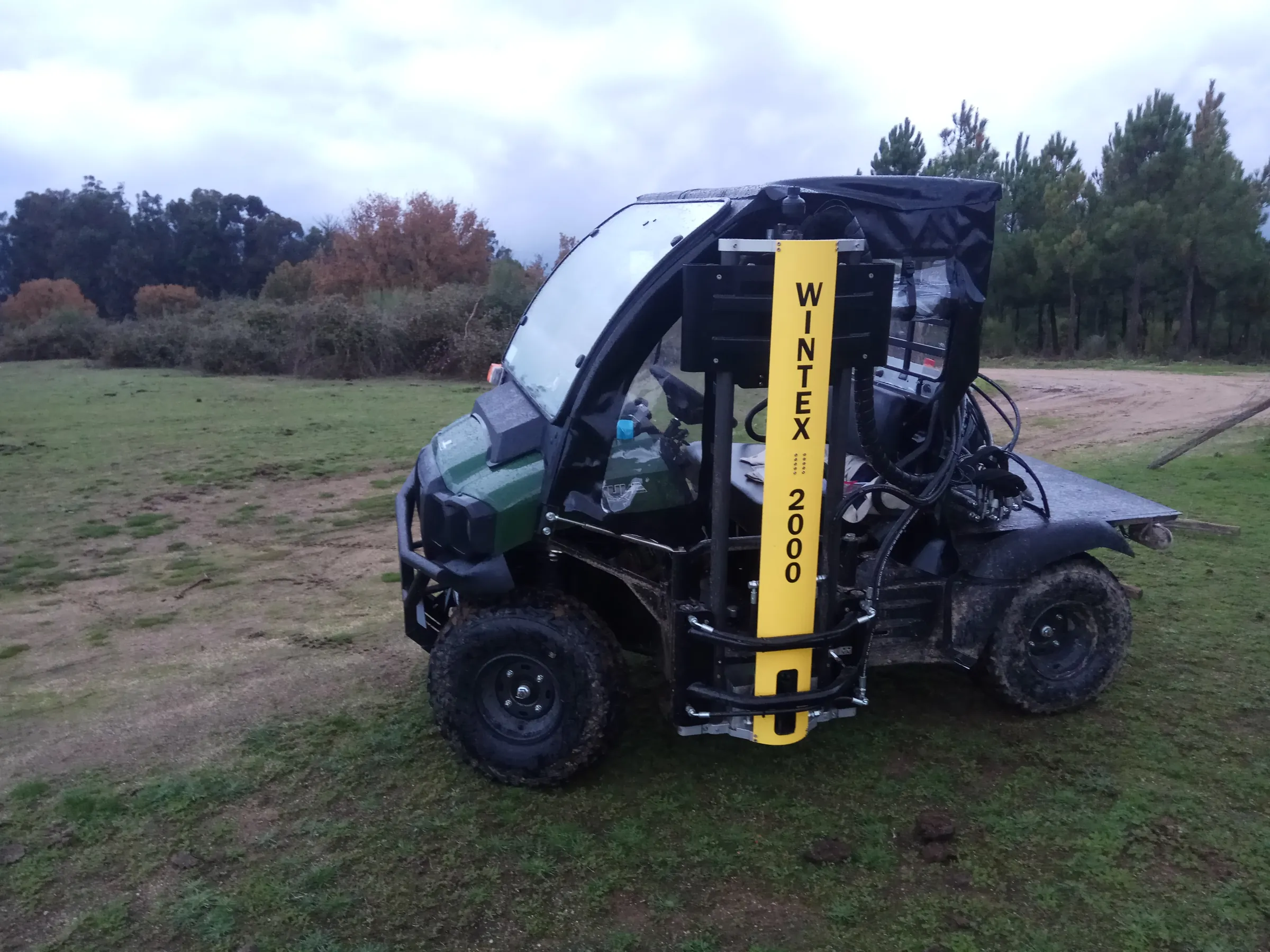

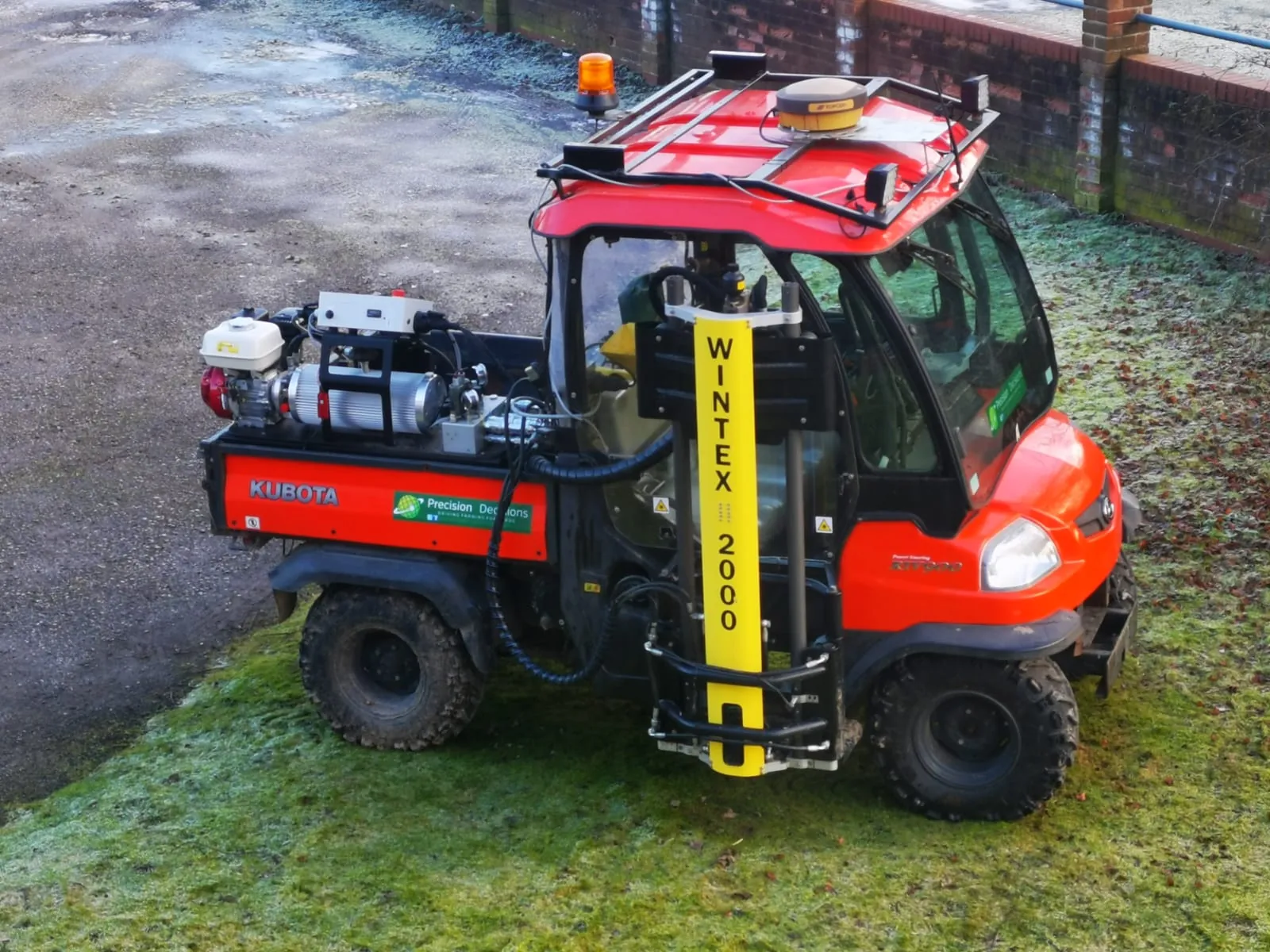

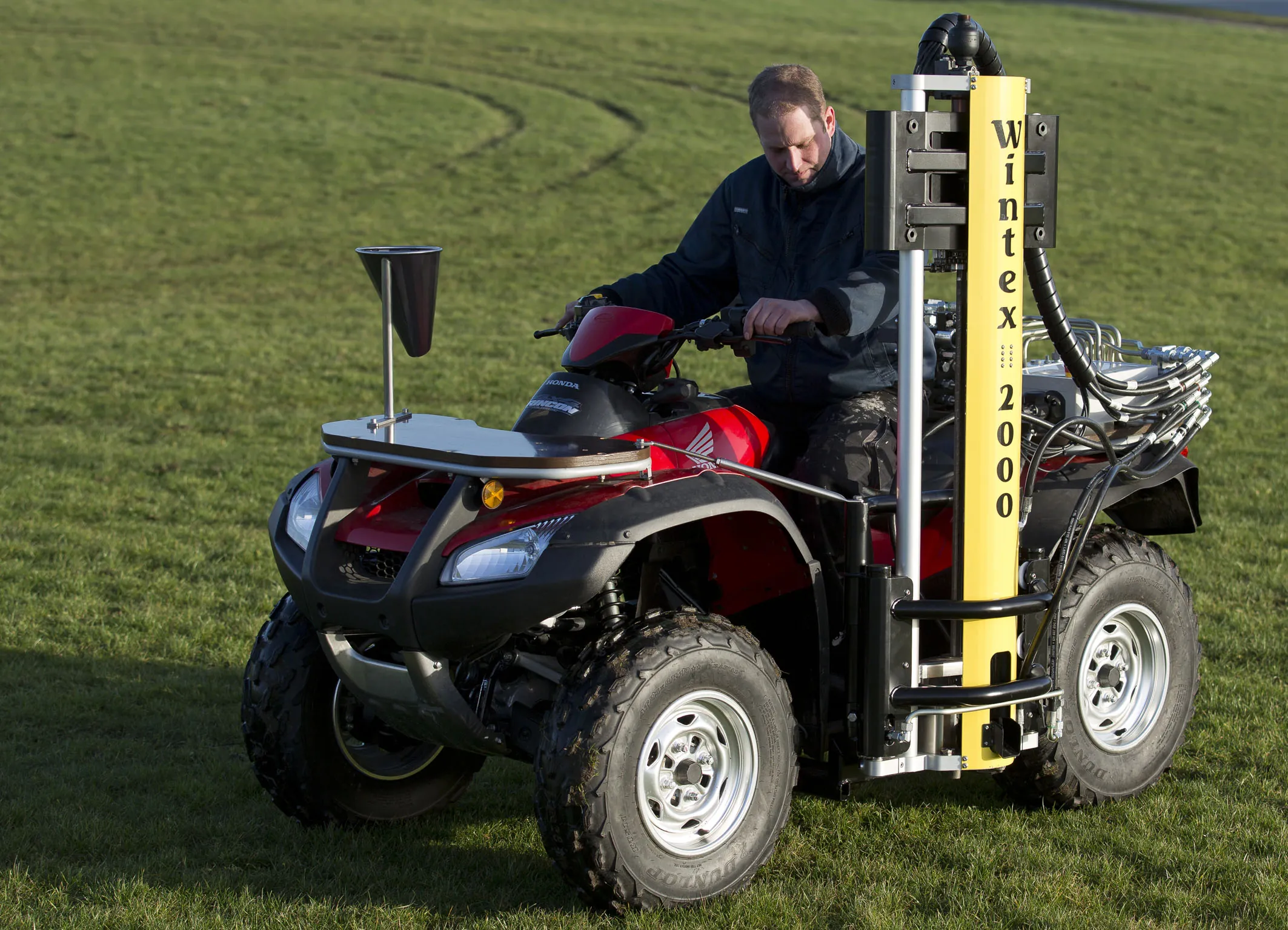

- Fits the fleetATVs, pick-ups, tracked vehicles, tractors and trailers.
Specifications
- Sampling depth
- 0–60 cm, infinitely adjustable
- Layers per operation
- 2
- Samples per hour
- 15
- Sticks per hour
- 225
- Sticks per sample
- 14–16
- Probe diameter
- 26 mm
- Volume per sample
- 26 mm probe for 1.5, 2.0 or 2.5 g/cm at density 1:1
- Hydraulic system
- Honda GX200, 5.5 hp
- Hydraulic consumption
- 16 l/min, 100 bar
- Hydraulic tank
- 7 litres
- Electrical power
- 12 V DC
- Battery capacity
- 14 Ah, 250 W
- Net weight
- 95 kg
Downloads
Questions about fitting it to your vehicle, or about prices? Your local representative will help, or contact us in Thisted.
Soil sampling with the Wintex 2000
All filmsFrom the field
“We decided to purchase a Wintex 2000 at the beginning of 2019 on the recommendation of colleagues in Austria, and for its variety of use for our clients’ requirements. It became an essential part of our soil nutrition service. The Wintex 2000 is an efficient sampler for huge acreage as well as in the hard soil conditions of vineyards. In short words, there is no impossible task when it is called to its duty. Easy operation and good manuals also need to be mentioned.”
Next · 0–60 cm
Wintex 2500
