Soil samplers
From 25 cm to two metres.
Wintex samplers take the strain out of soil sampling and make it fast, accurate and cost-effective. Mounted on virtually any vehicle, with every function from the driver’s seat.
Each built for a depth.
0–25 cmWintex 1000
Quiet, automatic and universally usable. Top-layer samples to 25 cm with three programs for different soils, and quick mounting on almost any vehicle.
0–30 cmWintex 1000s
Automatic samples to 30 cm in every kind of soil, frozen ground included. Reliable and robust, with a hydraulic hammer.
0–60 cmWintex 2000
Two programs, infinitely variable depth and two samples in one step. Automatic sampling to 60 cm in sand, clay, hard and dry soil.
0–60 cmWintex 2500
Three programs, infinitely variable depth and up to three samples in one step. Automatic sampling to 60 cm in every soil.
0–90 cmWintex 3000
Automatic samples to 90 cm in all soils, from three layers in one process. Accurate splitting into three soil boxes, depth individually adjustable.
0–100 cmWintex 3000s
Automatic samples to 100 cm in all soils, from three layers in one process. Accurate splitting, three soil boxes, depth individually adjustable.
To 120 or 200 cmThe deep one

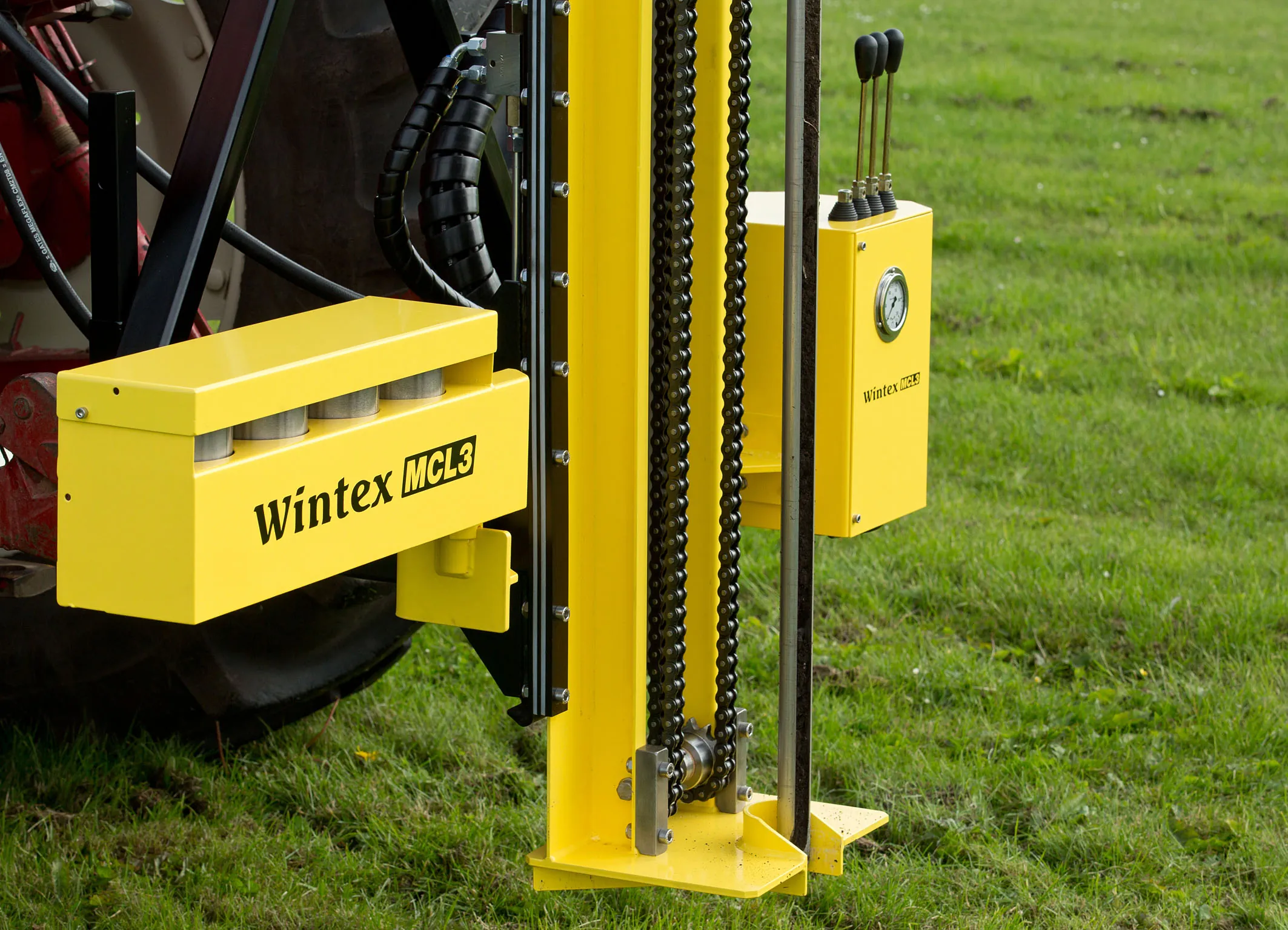

Wintex MCL3
Maximum power to 200 cm. Automatic control of sampling speed and a high-frequency hammer for representative, homogeneous samples.
Side by side.
| Model | 1000 | 1000s | 2000 | 2500 | 3000 | 3000s | MCL3 |
|---|---|---|---|---|---|---|---|
| Depth | 0–25 cm | 0–30 cm | 0–60 cm | 0–60 cm | 0–90 cm | 0–100 cm | To 120 or 200 cm |
| Layers per operation | 1 layer | 1 layer | 2 layers | 2 or 3 layers | 1, 2 or 3 layers | 1, 2 or 3 layers | Full core |
| Drive | Rotary, engine-driven | Hydraulic hammer | Hydraulic hammer | Hydraulic hammer | Hydraulic hammer | Hydraulic hammer | High-frequency hammer |
| Samples per hour | 20 | 15 | 15 | 15 | 15 | 15 | 4 |
| Probe | 18 mm and 21 mm | 26 mm | 26 mm | 26 mm | 26 mm | 26 mm | 35 mm |
| Net weight | 48.5 kg | 85 kg | 95 kg | 110 kg | 112 kg | 115 kg | 420 kg (MCL3), 290 kg (MCL3T) |
| Best for | Top-soil nutrient mapping, large acreage | Hard, dry and frozen top soil | Nitrogen and sub-soil sampling in two layers | Layered sampling to 60 cm | Nitrate profiles and deep layered sampling | Full-metre profiles, three layers | Nitrates Directive monitoring, research, deep profiles |
